Understanding Flow Meters in Industrial Systems

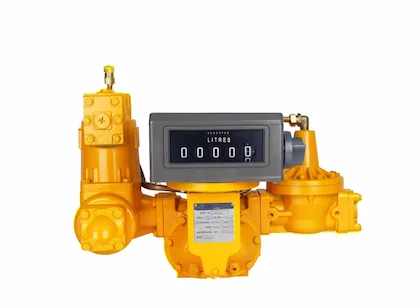

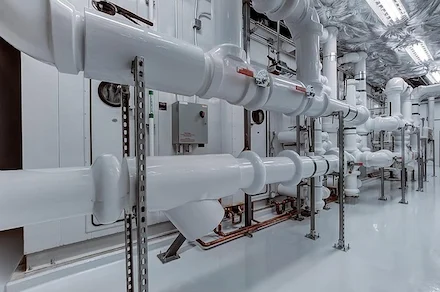

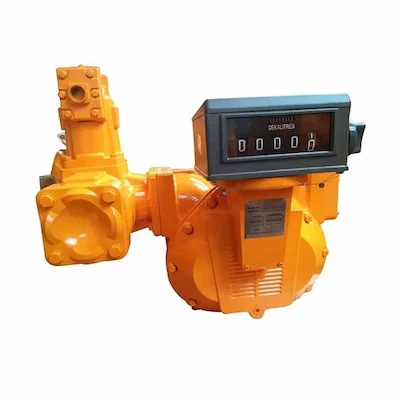

Flow meters are precision instruments designed to measure the rate of fluid movement in piping systems. These critical devices come in various types including electromagnetic, ultrasonic, turbine, Coriolis, and differential pressure meters, each optimized for specific fluids, flow rates, and accuracy requirements. From water treatment plants to oil refineries and pharmaceutical manufacturing, flow meters provide essential data for process control, billing, and regulatory compliance. This comprehensive guide explores flow meter technologies, selection criteria, installation best practices, and their vital role across industries.

Flow Meter Key Specifications

Proper flow meter selection requires careful consideration of these critical parameters to ensure accurate and reliable measurements.

Specification	Description	Considerations
Flow Range	Minimum and maximum measurable flow rates	Turndown ratio determines operational flexibility
Accuracy	Measurement precision (±0.5% to ±5% typical)	Critical for custody transfer applications
Connection Type	Flanged, threaded, wafer, or sanitary connections	Must match existing piping infrastructure
Fluid Compatibility	Materials resistant to measured media	Prevents corrosion and maintains accuracy
Pressure Rating	Maximum operating pressure (PSI/bar)	Must exceed system requirements with margin
Temperature Range	Operating temperature limits	Affects material selection and calibration
Output Signal	4-20mA, pulse, digital communication	Must integrate with control systems
Certifications	ATEX, IECEx, SIL, FDA compliance	Required for hazardous or regulated areas
